3in1 Combi coffee maker YOER Dualio CCM03BK

PRODUCT DETAILS

• 15 bar - high pressure will enable you to prepare delicious and aromatic coffee like from a cafe,
• 3in1 - you can prepare strong coffee in the pressure segment and delicate coffee in the drip segment; additionally the attached frother will enable you to prepare crema foam,
• Automatic shutdown (ECO mode) - the coffee maker is equipped with work sensor which make the device turn off automatically after a couple of minutes of inactivity, so do not worry about the durability of your device and money,
• Cup preheat function - get perfectly hot coffee every day,
• Milk frothing system - prepare fluffy foam and delicious Cappuccino, Caffe latte or cocoa,
• 850 W - optimal device power,
• Thermal cup - prepare up to 400 ml of hot coffee and take it to your work or college,
• Removable drip tray and drip plate - you will keep clean easily while making coffee,
• Coffee amount adjustment - brew as much coffee as you want and decide whether you would like to get strong or weak coffee,
• Fluent steam intensity adjustment - set the viscosity of the frothed milk according to your needs,
• 1,2 L removable water reservoir with a handle - fill and empty the reservoir without worrying about spilling of water,
• 10 coffee cups - brew more coffee cups without the need to refill the water reservoir,
• Measure spoon with a tamper - measure the perfect portion of coffee,
• Removable, reusable nylon filter - do not waste your money on buying paper filters,
• 2 coffee filters in the set - brew one or two coffee cups at the same time,
• Different heights of cups and glasses - brew weak or strong coffee in your favourite glass.

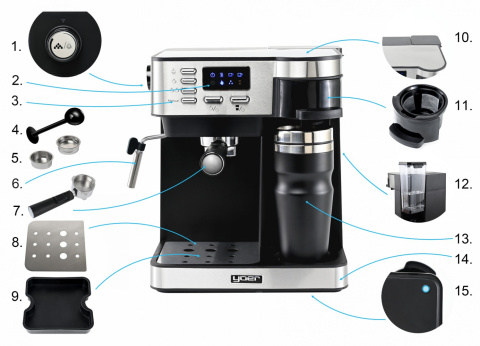

CONSTRUCTION - MAIN COMPONENTS

1. Steam knob
2. LED display
3. Function buttons
4. Measure spoon with tamper
5. Single or double coffee filter
6. Milk frother
7. Double nozzle porta-filter
8. Removable drip plate
9. Removable drip tray
10. Cup preheat plate
11. Removable filter support with reusable, nylon filter
12. Removable water reservoir
13. Thermal cup
14. Brushed INOX stainless steel body
15. Anti-slip base

3in1 - COMBI COFFEE MAKER + MILK FROTHER

✅ Pressure segment:

15 bar - high presure will enable to extract perfect taste and aroma from coffee and get thick, velvety crema foam.

Espresso available at the press of one button:

• drink in single coffee or double dose of coffeine,
• manual mode will enable you to prepare any amount of coffee.

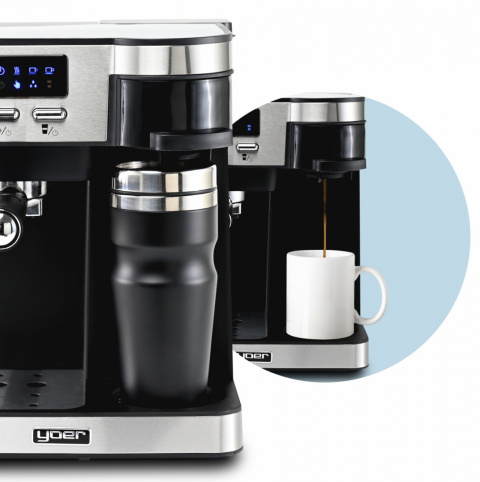

✅ Drip segment:

Traditional, brewed coffee - special construction of the coffee maker allows for preparation of brewed coffee in the drip segment.

Strong brewed coffee:

• drink in perfect "little black coffee" or add milk to already brewed beverage to make softer coffee,
• ground coffee - while making coffee there are extremely intense taste and aroma extracted from coffee beans which will spread throughout your kitchen.

✅ Milk frother - multi-purpose use:

• Milk frothing function - Cappuccino, Caffe Latte or cocoa at your fingertips.
• Heating beverages with hot steam - the frother nozzle can be used for preparation of hot beverages such as hot chocolate, water or tea.
• Hot water preparation function - brew your favourite drink.

HOT COFFEE FOR LATER

Thermal cup with the capacity of 400 ml:

Coffee for later:

• isolated walls - will allow you to enjoy your coffee longer,
• huge capacity - avoid continuous preparation of coffee.

Specially designed:

• removable lid - you will pour coffee or clean your cup easily, and the rubber seal will help to keep the heat longer,
• ergonomic shape - the cup will fit your palm perfectly.

Coffee in you cup - huge surface under the coffee maker will enable you to prepare coffee in your favourite cup, glass or mug.

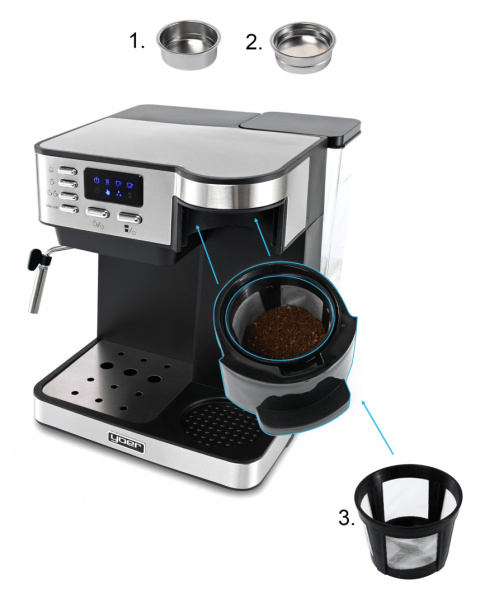

CONVENIENT USE

1. Double coffee filter - brew two coffee cups at the same time or one double coffee cup which will wake you up.

2. Single coffee filter - prepare single Espresso.

3. Reusable nylon filter:

• place the nylon ground coffee filter in the drip segment of the coffee maker in the specially pull-out filter support,
• remove, clean and reuse it very easily,
• do not buy paper disposable filters!

✅ Water reservoir with the capacity of 1,2 l:

• huge capacity - will enable you to prepare up to 10 coffee cups at the same time.
• possibility of disassembly - will make it easy to refill, empty and clean the water reservoir.

💲 ECO function - optimal power of 850 W:

• 95 seconds - the coffee maker is ready to work after a couple of minutes,
• adequate power will save energy,
• automatic shutdown after 25 minutes of inactivity - savings in the home budget guaranteed!

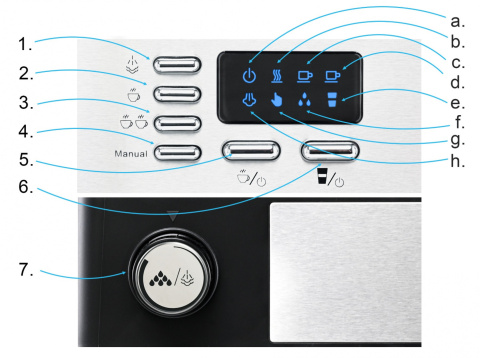

DIGITAL LED DISPLAY AND CONTROL PANEL

Backlit control panel will make using the device easier and will ensure the device exclusive design.

FUNCTION BUTTONS:

1. Steam button - press it to start the steam generation process or frothing milk.
2. One cup button - press it to brew single espresso.
3. Two cups button - press it to brew double espresso.
4. Manual coffee amount adjustment - press it to start brewing coffee; press it once again to stop brewing coffee.
5. Espresso coffee button - press it to start the pressure segment of the coffee maker.
6. Drip coffee button - press it to turn on the pressure.
7. Steam control knob - turn it to set the level of milk density.

ICONS ON THE DISPLAY:

• a - Power - signalises that the coffee maker is turned on.
• b - Heat-up - informs that the coffee maker has achieved the right temperature for making coffee.
• c - Single espresso - blinks while preparing a cup of coffee.
• d - Double espresso - blinks when preparing two cups of coffee.
• e - Drip segment - signalises that the coffee maker is preparing coffee in the drip segment.
• f - Hot water - informs that water is to flow through the frother.
• g - Manual mode - informs that the coffee maker is operating in manual mode.
• h - Steam function - informs of milk frother operation.

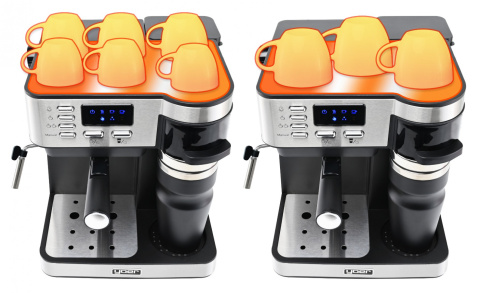

CUP PREHEAT FUNCTION

✅ Get perfectly warm and aromatic coffee:

Heater and steel tray:

• the top part of the coffee maker serves as a cup heater,
• perfect taste and aroma - previously heated-up cups have a positive bearing on the taste of coffee and ensure keeping proper temperature of beverage for longer.
• you can put 6 small or 3 large cups on the tray.

Integrated operation - the cup preheat function is engaged upon turning on the appliance.

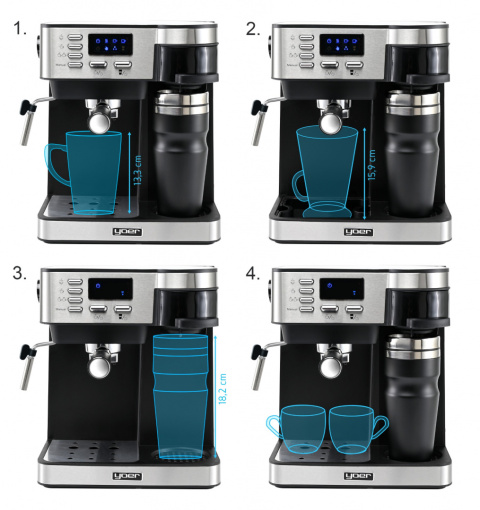

4 DIFFERENT HEIGHTS AND TYPES OF CUPS AND GLASSES CAPACITY

The contruction of the coffee maker - allows for the use of cups, glasses and mugs of different heights:

1. Max. 13,3 cm (5.2 ") - dish placed on a drip plate.
2. Max. 15,9 cm (6.3 ") - dish which can be placed after removing the drip plate.
3. Max. 18,2 cm (7.3 ") - mug or small thermos placed in the drip segment.
4. 2 coffee cups - double nozzle:
   • brew two coffee cups at the same time and save your time,
   • or prepare double dose of coffeine in one cup.
5. Max. 16 cm (6.3 ") - a dish which you will fill with hot water from the milk frother or heat up your beverage with the help of steam.

Removable drip tray and drip plate - prepare coffee in your favourite cup and keep the space around the coffee maker clean.

Specialized, textured plate - makes moving the cup impossible while pouring coffee in the drip segment.

EXCLUSIVE DESIGN

Modern design - enjoy your exclusive coffee maker:

• durable body with INOX steel elements - use a solid beautiful and unique device,
• black color - show this solid, elegant and timeless coffee maker to your friends,
• LED dispaly with intuitive control panel - use your coffee maker in a convenient way.

Compact size - relatively small size of the coffee maker has a lot of advantages:

• convenient storage - when you do not use the coffee maker you can store it in a small cabinet,
• it does not take up much space - the coffee maker will fit even on a small kitchen counter.

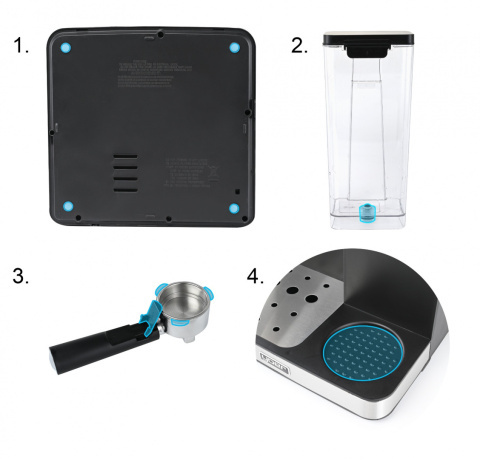

SAFETY AND CONVENIENCE OF USE

1. Anti-slip feet:

• will ensure perfect stability of the coffee maker during brewing coffee,
• will prevent from sudden movement of the coffee maker during brewing coffee or placing a porta-filter under the metal funnel holder.

2. Water reservoir with a handle and spring valve - assemble and disassemble the reservoir to fill, empty or clean it - without worrying about spilling of water.

3. Double lock in the porta-filter:

• lock of the coffee filter in the porta-filter - place and remove the porta-filter in the metal funnel holder without worrying about spilling of fresh or used ground coffee,
• lock of the porta-filter in the metal funnel holder - fixed tightly porta-filter will provide you with safety during the high pressure water flow.

4. Special types of surface:

• textured plate of the drip segment,
• anti-slip thermal cup plate - do not worry about accidental spilling of coffee.

5. Latch mechanism - set the coffee filter in the porta-filter and the porta-filter under the filter support safely.

6. Removable drip tray with drip plate:

• use the coffee maker without worrying of flooding your kitchen counter,
• keep clean while making coffee.

TECHNICAL SPECIFICATION

• Water reservoir capacity: 1,2 L (10 coffee cups)
• Thermal cup capacity: 400 ml
• Max. cup height in the pressure segment: 15,9 cm (6.3")
• Max. cup height in the drip segment: 18,2 cm (7.2 ")
• Power: 850 W
• Pressure: 15 bar
• Heat-up time: 95 seconds
• Power cord length: 77 cm (30.3 ")
• Weight: 4,5 kg (9.9 lb)

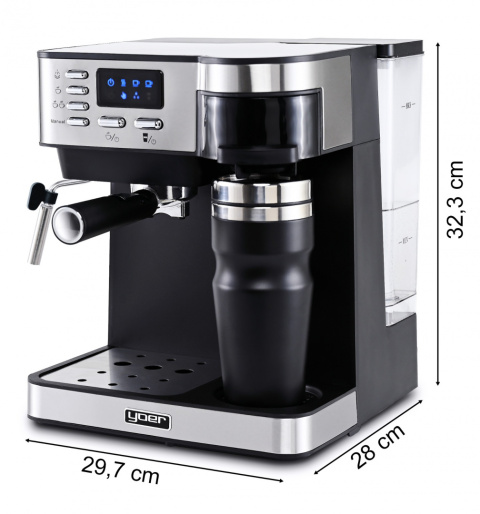

• Dimensions: 32,3 cm (height) x 29,7 cm (width) x 28 cm (length) (12.7 x 3.1 x 32.3 ")
• Color: Black with INOX steel accents
• Polish power plug: 220-240V 50/60Hz

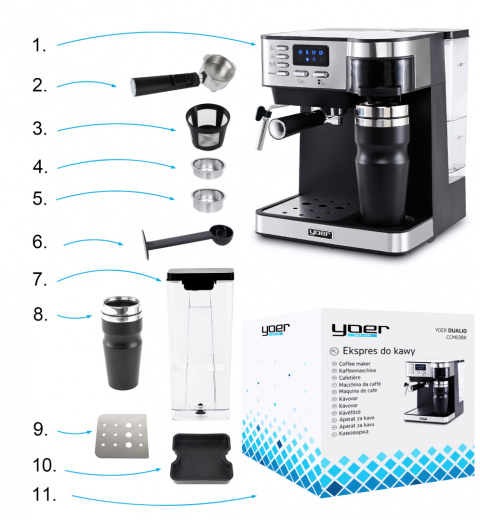

EQUIPMENT

1. Combi coffee maker
2. Dual nozzle porta-filter
3. Removable, reusable ground coffee nylon filter
4. Single coffee filter
5. Double coffee filter
6. Measure spoon with tamper
7. Removable water reservoir
8. Thermal cup
9. Removable drip plate
10. Removable drip tray
11. Original packaging

YOU WILL RECEIVE:

• Coffee maker - details above,
• YOER PLATINUM SECURITY card,
• Warranty card,
• PL/EN Instruction manual.
